The BMW E83 X3, E53 X5, E70 X5 and E71 X6 ( BMW 27107566296. 27107568267) transfer case motor is a common failure. Vanos-BMW.com has developed a Nylon with Carbon Fiber Reinforcement solution to replace only the broken gear, instead of the entire motor, saving you hundreds of dollars on the repair!
It provides the connection of the front axle , with a command from the control unit.
Team management comes when, with the ABS control unit is appropriate signal about what is the difference between the rotation of the rear wheels.
Block commands the servo motor turns on and connects the front bridge over the transfer case .

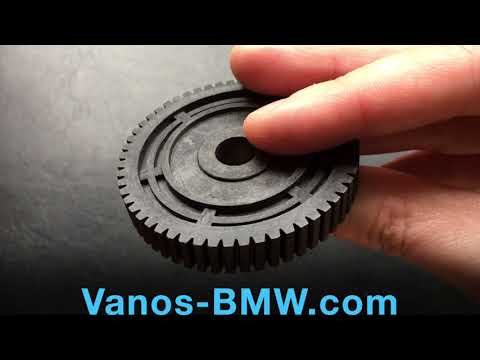

Material Nylon With Carbon Fiber Reinforcement.
Conductive gears – the same material as the original in the new motor.
BMW:
E53 X5 Transfer Case Motor Gear
E83 X3 Transfer Case Motor Gear
E70 X5 Transfer Case Motor Gear
E71 X6 Transfer Case Motor Gear
also
Land Rover Discovery LR3 and LR4, Range Rover Sport: pat # ITC1228991, ITC 1 22 899 1
Mercedes-Benz GL and ML (164/166) : pat # A164 540 01 88
Bosch 0130008508
Transfer Case Motor Gear 27 10 7 566 296 GR
The transfer case motor is a common failure. Inside the motor is a
plastic gear that is prone to wearing out over time, which can cause malfunction faults and leave
the all-wheel-drive system inoperable. Solution to replace only
the broken gear, instead of the entire motor, saving you hundreds of dollars on the repair!
27-10-7-566-296GR / 27 10 7 566 296GR / 27107566296GR
27-10-7-566-296 / 27 10 7 566 296 / 27107566296
27107568267
BOSCH 0130008507 8473227771
09-3509-010 / 09 3509 010 / 093509010
Gear transfer case BMW
If Your car have a problem with razdatkoy you immediately know about it at the lit-up Christmas lights the warning lights on the dashboard.
Everyone who has ever faced with the repair of the transfer case know how expensive it can cost.
However, not everyone knows that it is often to repair transfer case BMW is enough to change the plastic gear servo.
Standard repair of servo transfer case BMW is replacing the plastic gear. The replacement gear will also need to change the oil in razdatki and reset the adaptation in the control unit.
Common causes of malfunction transfer case BMW in descending order:
The wear and tear of servo gear transfer case
The wear of the friction
Bearings wear
The tension of the chain
The turning of the universal joint (flange)
Breaking of the upper drive shaft
Are affected by this issue
transfer case BMW X3 E83
transfer case BMW X5 E53
transfer case BMW X5 E70 (Fidler for cars up to 2010 issue)
transfer case BMW X6 E71 (up to 2010)
